Bottle Filling Rotating Semi Automatic Machine 2 Head
300000.0 INR/Number
Product Details:
- Product Type Bottle Filling Rotating Semi Automatic Machine 2 Head
- Material Stainless Steel (SS304)
- Application Liquid Bottle Filling for Food, Beverages, Chemicals, Pharma
- Computerized Yes
- Automatic Grade Semi Automatic
- Control System PLC Controlled
- Drive Type Electric Motor Driven
- Click to View more
X
Bottle Filling Rotating Semi Automatic Machine 2 Head Price And Quantity
- 300000.0 INR/Number
- 1 Number
Bottle Filling Rotating Semi Automatic Machine 2 Head Product Specifications
- Approximately 110 kg
- Liquid Bottle Filling for Food, Beverages, Chemicals, Pharma
- Semi Automatic
- Yes
- Blue and Silver
- 1100 mm x 900 mm x 1550 mm
- Stainless Steel (SS304)
- 230 V AC, Single Phase
- Electric Motor Driven
- Bottle Filling Rotating Semi Automatic Machine 2 Head
- Rotary Table, Twin Filling Heads, Touchscreen Interface, Adjustable Volume
- PLC Controlled
- 15 to 20 Bottles per Minute (Depending on Bottle Volume)
- 6 Bar, 5 CFM
- Drip-Free Nozzles
- Indoor, Dust-Free Area
- Emergency Stop, Sensor Activated Auto Shut-Off
- 2
- Plastic, Glass, PET
- HMI Touch Screen
- Heavy Duty Stainless Steel
- 50 ml to 1000 ml (Customizable)
- 1%
- 0.75 kW
- 600 mm
- Less than 10 Minutes
- Minimal, Easy to Clean Design
Product Description

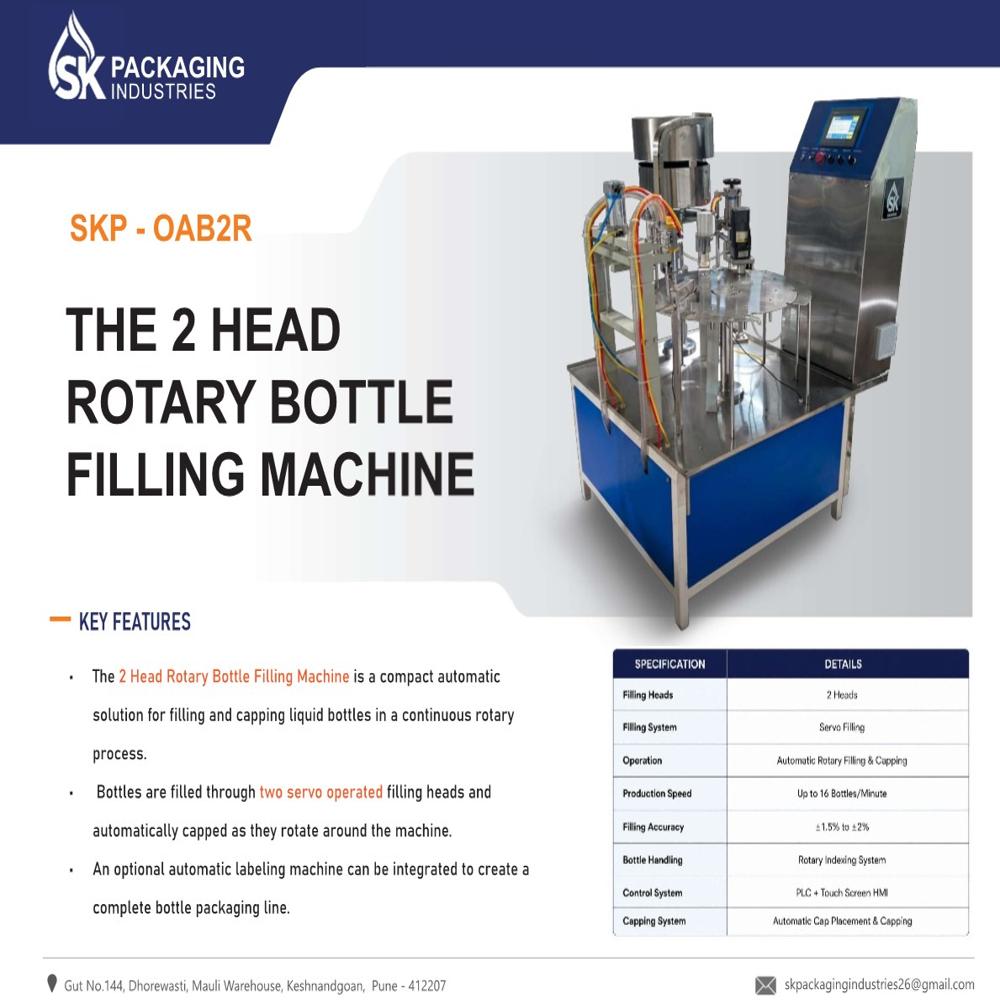

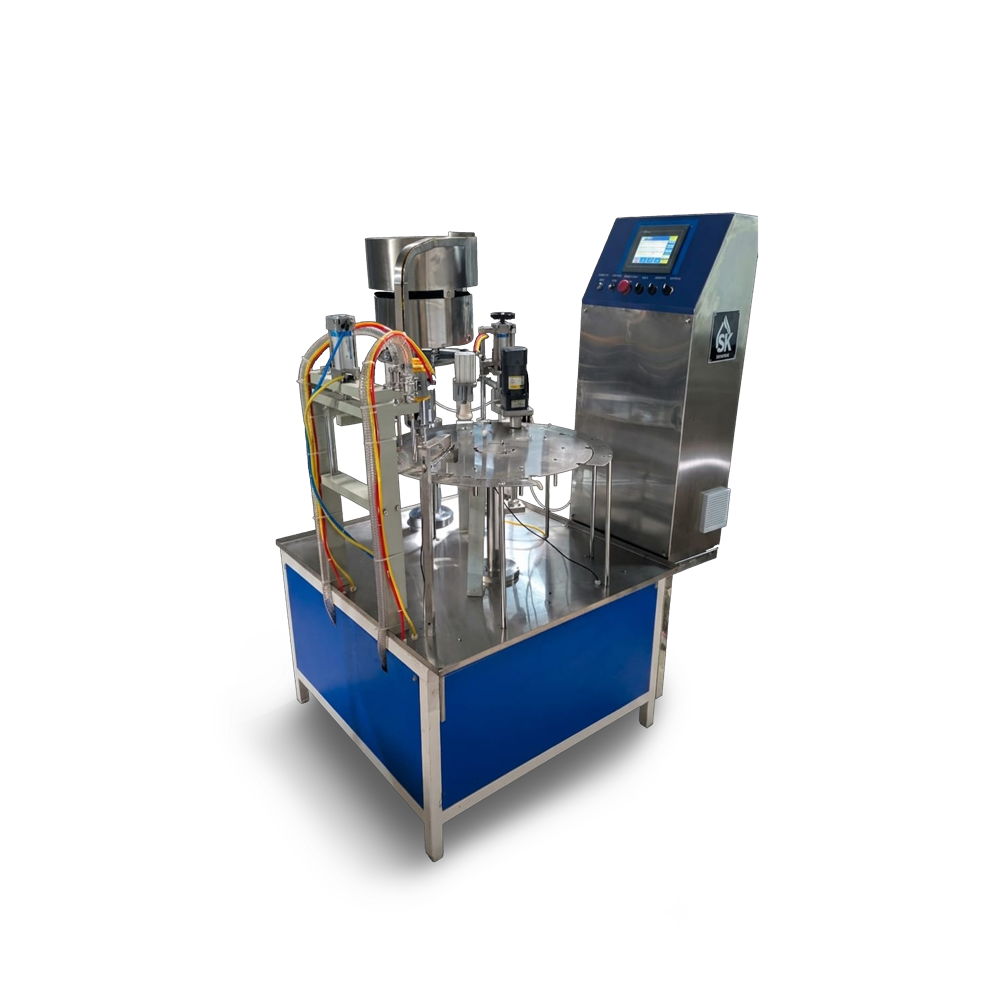

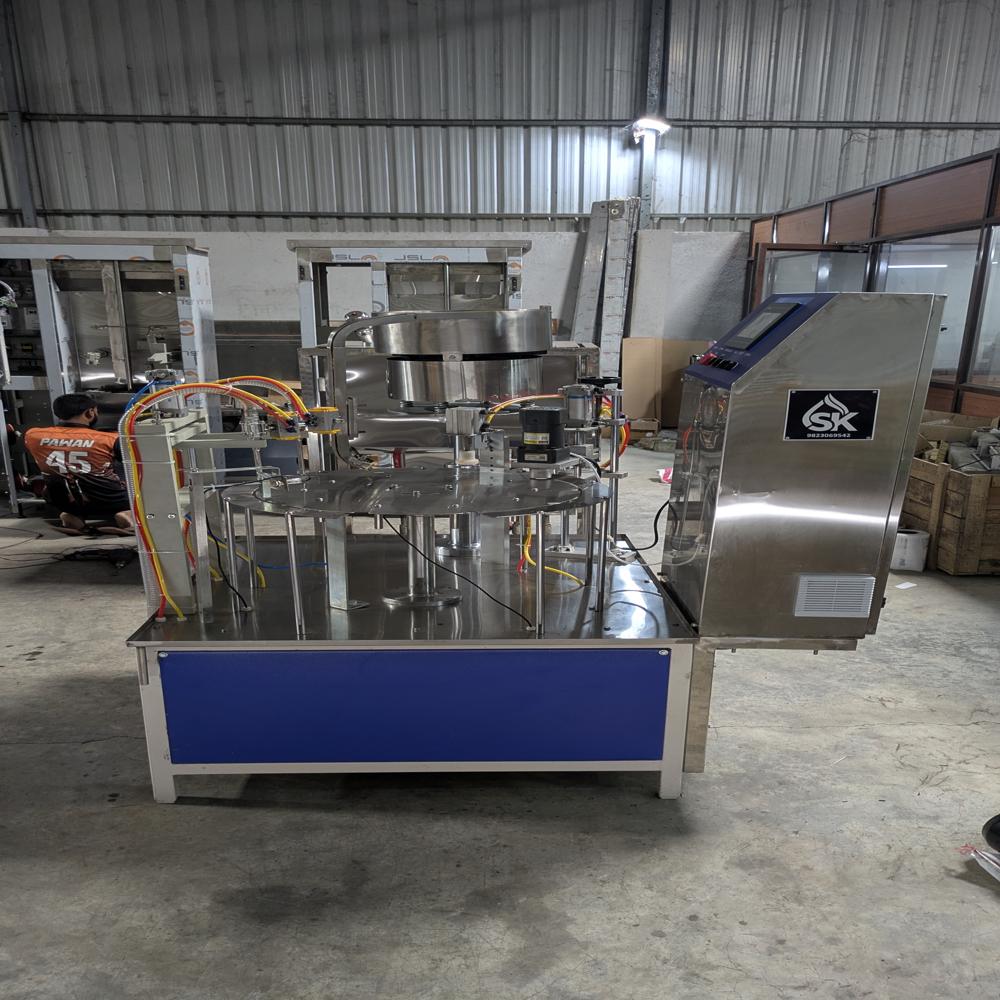

2-Head Rotating Semi-Automatic Bottle Filling Machine
The 2-Head Rotating Semi-Automatic Bottle Filling Machine from SK Packaging is designed for efficient and reliable filling of liquid products in bottles. The machine operates with a simple and user-friendly system, where the operator manually loads two bottles at a time onto the filling station. The rotating mechanism then positions the bottles accurately under the filling heads for consistent and uniform filling.
With a production capacity of up to 10 bottles per minute, the machine is suitable for small- to medium-scale production requirements. After filling, the bottles can be capped as part of the integrated operation, reducing manual handling and improving overall packaging efficiency.
A labelling system can also be provided as an optional add-on, allowing the machine to be configured according to the customer's packaging requirements.
Key Features:
-
2-head rotating filling system
-
Manual loading of 2 bottles at a time
-
Filling capacity: Up to 10 BPM
-
Integrated bottle capping
-
Consistent and accurate liquid filling
-
Compact and easy-to-operate design
-
Optional automatic labelling system
-
Suitable for small and medium-scale production
Highly Accurate, Customizable Filling Solution
Experience precise, fast, and clean liquid filling with dual-head technology and a rotary table for increased efficiency. The adjustable filling range from 50 ml to 1000 ml, drip-free nozzles, and PLC control system allow for accurate operation across diverse industries, including food, pharmaceuticals, and chemicals. The stainless steel build ensures durability and hygiene, suitable for indoor, dust-free work areas.
User-Friendly and Minimal Maintenance
This semi-automatic machine features an HMI touchscreen interface for straightforward operation and real-time control. With easy bottle type changeover in under 10 minutes and a minimal maintenance demand, this system is ideal for operators seeking efficiency with less downtime. Its design prioritizes easy cleaning and safe function, with integrated emergency stop and auto shut-off sensors.
FAQ's of Bottle Filling Rotating Semi Automatic Machine 2 Head:
Q: How does the Bottle Filling Rotating Semi Automatic Machine work?
A: The machine utilizes a rotary table and two filling heads to automatically fill bottles with liquid. Operators set the desired filling volume (between 50 ml and 1000 ml) via the HMI touchscreen. Bottles are placed on the rotary table, filled by the drip-free nozzles, and then removed once the cycle completes. PLC controls and electric motor drive ensure consistent and accurate operation.Q: What types of bottles and liquids can this machine handle?
A: This machine is adaptable to plastic, glass, and PET bottles, supporting a filling range of 50 ml to 1000 ml. It is suitable for various liquids found in food, beverage, chemical, and pharmaceutical applications, provided the products are compatible with stainless steel contact parts.Q: When is a changeover between bottle types or sizes required, and how long does it take?
A: Changeover is needed whenever you switch bottle types or sizes. The machine is designed for rapid conversions, allowing users to complete the change in less than 10 minutes with minimal adjustments, helping reduce downtime during production workflows.Q: Where should this filling machine be installed for optimal performance?
A: For best results, the machine should be positioned indoors in a dust-free environment. This maintains product quality, protects sensitive electronics, and complies with hygiene requirements in food or pharmaceutical settings.Q: What is the filling accuracy and how is it maintained during operation?
A: The machine achieves a high filling accuracy of 1%, managed by its PLC control system and precision-engineered filling heads. Consistency is further supported by the HMI touchscreen interface, which allows adjustments and real-time monitoring by the operator.Q: How does the machine ensure operator safety during use?
A: Operator safety is prioritized through integrated emergency stop functions and a sensor-activated auto shut-off that halts operation in the event of bottle misplacement or potential hazards, preventing possible accidents.Q: What are the main benefits of using this semi-automatic filling machine?
A: Main benefits include high versatility, precise and drip-free filling, fast changeovers, user-friendly controls, durable stainless steel construction, and built-in safety features. This results in increased productivity, improved hygiene, and reliable performance for various production needs.Tell us about your requirement
