Winder Rewinder Machine

Name: Winder Rewinder Machine
Brand: S K PACKAGING INDUSTRIES
Price: 150000.0 INR
Availability: InStock

150000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 2 HP
Voltage 220V/380V
Drive AC Drive
Connectivity Options No external connectivity
Noise Level Less than 75 dB
Features Heavy Duty Structure, Easy Web Guiding, Auto Tension Control
Operating Temperature 5C - 45C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Winder Rewinder Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 150000.0 INR/Unit

Winder Rewinder Machine Product Specifications

Surface Treatment Powder Coated
Technology PLC Controlled Automation
Lubricating System Manual
Model No WR-150
Cooling System Air Cooled Motor
Machine Type Winder Rewinder
Production Capacity Up to 150 meters/minute
Usage & Applications Rewinding and unwinding of printed and plain rolls
Operating Type Semi-Automatic
Plastic Processed Films, Labels, Paper
Frequency 50 Hz
Dimension (L*W*H) 1500 mm x 1200 mm x 1300 mm
Motor Power 2 HP AC Motor
Accuracy 0.5 mm
Pressure Adjustable pneumatic system
Frame Type Mild Steel Fabricated
Features Heavy Duty Structure, Easy Web Guiding, Auto Tension Control
Operating Temperature 5C - 45C
Connectivity Options No external connectivity
Noise Level Less than 75 dB
Power 2 kW
Control System Integrated Control Panel with Digital Display
Power Rating 2 HP
Color Grey & White
Weight (kg) Approx 380 kg
Voltage 220V/380V
Drive AC Drive
Power Source Electric
Product Type Winder Rewinder Machine

Working Speed 70-150 meters/minute
Material Suitable BOPP, PET, LDPE, PVC, Paper, Aluminium Foil
Unwind/Rewind Shaft 3 Inch (76 mm core)
Installation Type Floor Mounted
Tension Control Manual and Pneumatic Adjustment
Max. Roll Diameter 600 mm
Display Type Digital Counter
Max. Web Width 600 mm
Safety Measures Emergency Stop, Overload Protection
Transmission Type Gear and Belt Drive
Web Alignment Manual and Sensor-based
Reel Handling Front and Rear Loading
Maintenance Low Request, Easy Access Design

Winder Rewinder Machine Trade Information

Supply Ability 1 Unit Per Month
Delivery Time 4 Week
Main Domestic Market All India

Product Description

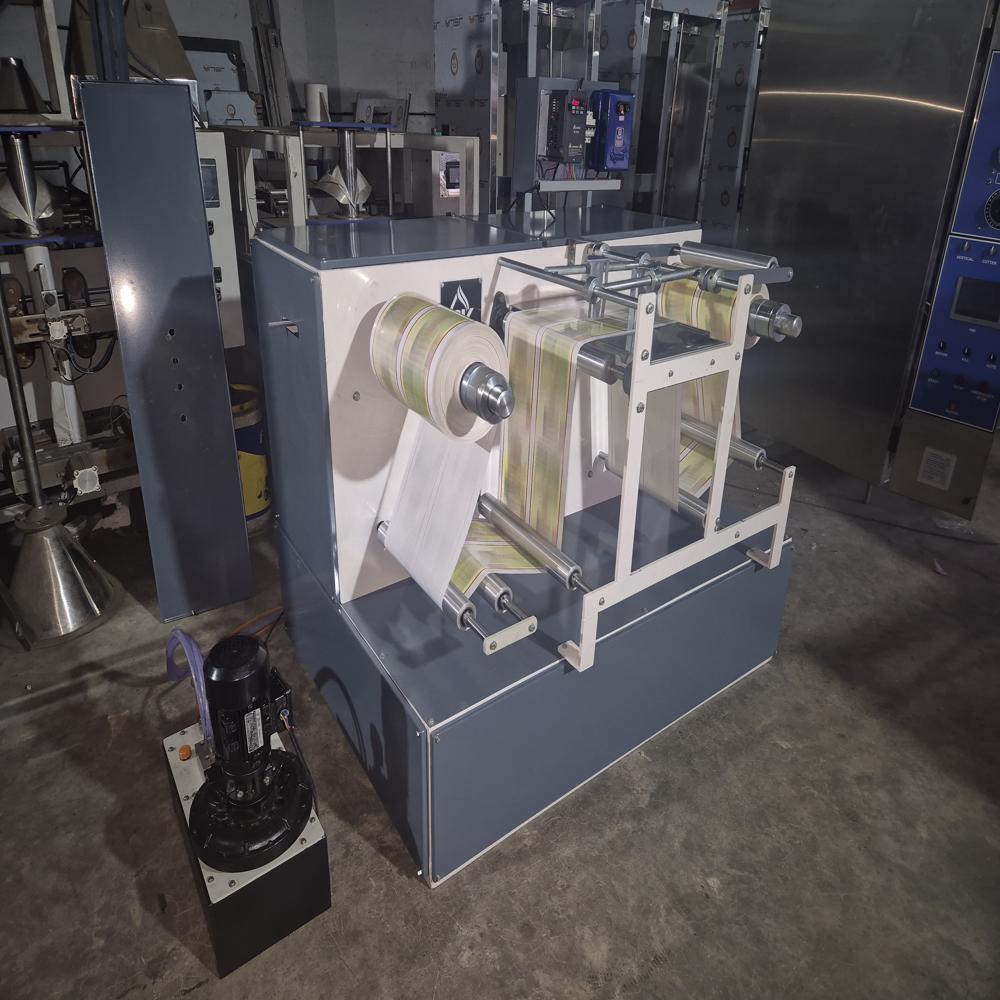

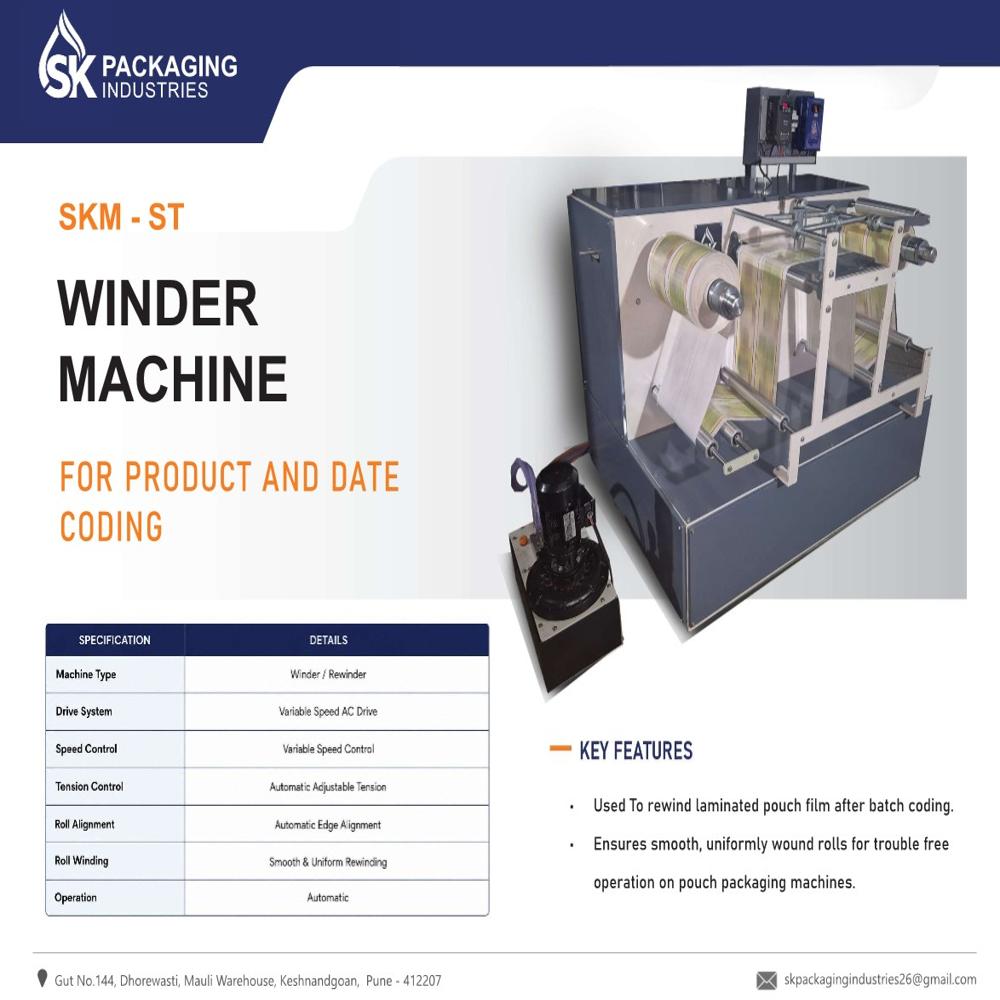

Winder Rewinder Machine

The Winder Rewinder Machine from SK Packaging is designed for efficient rewinding of packaging film while enabling the printing of essential variable information such as Batch Number, MRP, Manufacturing Date, Expiry Date, Lot Number, and other product details.

Equipped with a variable-speed control system, the machine allows the operator to adjust the rewinding speed according to the film and printing requirements, ensuring smooth and consistent operation. Its efficient winding mechanism helps maintain proper film alignment and tension for reliable printing and neatly rewound rolls.

Compact, easy to operate, and highly efficient, the machine is an ideal solution for preparing printed packaging film before the pouch packing process.

Key Features:
- Suitable for printing Batch No., MRP, Mfg. Date, Expiry Date, Lot No., etc.
- Variable speed control
- Smooth and uniform rewinding
- Consistent film alignment and tension
- Efficient and user-friendly operation
- Compact and robust construction
- Suitable for various flexible packaging films

Advanced Tension and Web Control

Precision is assured through manual and pneumatic tension adjustments, coupled with advanced web alignment guided by sensors or manual settings. This ensures smooth rewinding or unwinding processes for even the most delicate films and foils, preventing material damage and promoting consistent results throughout your production run.

User-Friendly Automation and Maintenance

The WR-150 incorporates PLC-controlled semi-automation with an integrated digital display panel, offering intuitive operation and real-time monitoring. Its easy-access, low-maintenance design, paired with manual lubricating points and an air-cooled motor, significantly minimizes downtime and facilitates straightforward upkeep.

Robust Build and Safety Features

Constructed with a heavy-duty mild steel frame and powder-coated for durability, this winder rewinder includes critical safety mechanisms such as emergency stop and overload protection. Floor mounting and ergonomic loading ensure secure, stable setup, meeting the demands of both large-scale and mid-sized production environments.

FAQ's of Winder Rewinder Machine:

Q: How does the WR-150 Winder Rewinder Machine control web tension during operation?

A: The machine utilizes both manual and pneumatic adjustment systems to provide precise control over web tension, ensuring smooth handling and minimizing material stretching or wrinkling during rewinding and unwinding.

Q: What materials and roll specifications can this machine process?

A: The WR-150 is suitable for BOPP, PET, LDPE, PVC, paper, aluminium foil, and similar materials. It accepts rolls up to 600 mm in diameter and web widths up to 600 mm, using a 76 mm (3 inch) shaft core.

Q: When should I use the manual versus sensor-based web alignment?

A: Manual web alignment is ideal for straightforward jobs or when handling rigid materials, while sensor-based alignment provides superior accuracy for delicate or high-speed applications, helping prevent tracking errors and material wastage.

Q: Where is this machine typically installed, and what power requirements should I consider?

A: The WR-150 is designed for floor-mounted installation in industrial environments. It requires an electric power supply of 220V or 380V at 50 Hz, with a 2 HP (2 kW) AC drive motor.

Q: What is the operating process and ease of use for the WR-150?

A: Operation is semi-automatic, guided by a PLC-based control system with a digital display. Front and rear loading, auto tension control, and ergonomic design simplify setup, monitoring, and reel replacement, making it user-friendly for operators.

Q: What are the main benefits of using this winder rewinder machine in production?

A: Key benefits include high working speeds (up to 150 meters/min), precise tension and alignment controls, versatility with various materials, heavy-duty construction, built-in safety features, and low maintenance requirements-maximizing uptime and product quality.
